More everyday relevance. Less ambiguity.

Change in the statutory test methods for consumption, emissions and pollutants.

In 1992, the New European Driving Cycle (NEDC for short) was introduced. Since then, this procedure has been used to determine the fuel consumption and emission values of vehicles. However, the conditions of this laboratory test have always contained disadvantages in determining realistic consumption and emission values.

Therefore by fall 2018, a new driving cycle called WLTP (Worldwide Harmonized Light Vehicles Test Procedure) is to replace the NEDC step by step.

This laboratory test will also be supplemented by an emissions test that measures pollutants directly on the road: RDE (Real Driving Emissions).

Teasers

WLTP is a new legally binding test procedure for all car manufacturers to determine figures for exhaust emissions and fuel consumption. By approximating the test conditions to those of the real world, WLTP will deliver more practically relevant values. One of the changes is a significantly longer test duration (30 instead of 20 minutes) as well as redefined, significantly higher test speeds. To obtain a more precise determination of CO2 emissions, the new test procedure will include not only standard equipment options – as was previously the case – but also all special equipment options of a vehicle. This will produce within the communication two values for each type of vehicle: the lowest and highest possible standard consumption value according to the equipment options. In the case of a specific vehicle configuration, however, the individual standard value can be indicated directly.

Thanks to WLTP, you will be able to better assess a vehicle’s consumption and CO2 emissions in future. As these values will be measured more realistically than before, higher consumption and CO2 figures can be expected for vehicles with combustion engines. In the case of electric vehicles, the electric range will decrease.

MINI is already working on the transition to the new test procedure and is preparing its product portfolio step by step with new vehicles, new engine versions or technical revisions. This will enable complete WLTP conformity to be assured for the entire fleet of the BMW Group. From September 2018, all automobile manufacturers throughout the EU as well as in Switzerland and Turkey will be legally obliged to produce only vehicles that have been tested in accordance with the WLTP procedure. The transition within the markets will depend on the respective national legislation. However, by December 2020, all countries that adopt the EU legislation for the approval of vehicles must indicate WLTP values for all vehicles.

“The new test will ensure that lab measurements better reflect the on-road performance of a car.”

– European Automobile Manufacturers Association [Disclaimer für Quelle?]

Teasers

“The new test will ensure that lab measurements better reflect the on-road performance of a car.”

– European Automobile Manufacturers Association

WLTP compared with NEDC.

These are the specific differences between the old and new test procedure.

Test conditions
NEDC
WLTP
Test duration
20 min.
30 min.
Test distance
11 km
23.5 km
Time spent stationary
25%
13%

Real Driving Emissions.

Restriction of pollutant values on the road.

In addition to WLTP, RDE (Real Driving Emissions) will also be compulsory for all vehicle manufacturers from September 2018. In these RDE tests, the pollutant emissions such as particulate matter and nitrogen oxides (NOx) are measured directly on the road. This method determines average emission values that can be expected during everyday driving. In order to further reduce these pollutant values, MINI employs various technologies for reducing exhaust emission in its models: measures include BluePerformance with SCR (Selective Catalytic Reduction) and particulate filters in diesel vehicles as well as particulate filters in petrol vehicles. In this way, MINI is able to comply with the low threshold limit values of the EU6c exhaust emissions standard, which is compulsory for all new vehicles as from fall 2018. The EU6c exhaust emissions standard prescribes lower limits for petrol-engine vehicles compared to EU6b. The same limits apply for diesel-engine vehicles within the cycle for both EU6b and EU6c.

dam Image

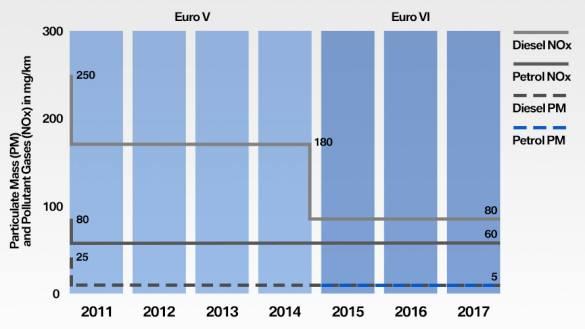

EU exhaust emissions standard.

Falling values. Increasing challenge. The EU exhaust emissions standard defines the valid limits for exhaust emissions such as nitrogen oxides and particulate matter within the EU. The limits vary according to engine and type of vehicle. For the benefit of climate protection and air quality, the limits undergo increasing intensification. This confronts automobile manufacturers with new challenges.

dam Image

September 2017.

The step-by-step transition to WLTP and RDE will take place as of September 2017.

  • Your questions. Our answers.
  • What is WLTP?

    This involves a new test procedure for a more realistic determination of fuel consumption and CO2 emission values of vehicles that will be legally binding for all vehicles as of September 2018. WLTP will replace step-by-step the previously applicable NEDC procedure.

  • What is the WLTP driving cycle?

    A vehicle’s consumption and emission depend on driving style. This is why driving data have been compiled for WLTP around the world. These data were used to define 4 representative phases with different average speeds: low, medium, high and extra high. Within each of these phases, there are different intensities of acceleration, braking and stopping in order to depict situations with a relevance to everyday driving style. The combination of these phases then results in the driving cycle.

  • How does MINI deal with the new WLTP procedure?

    MINI is already working on the transition to the new test procedure and is preparing its product portfolio step-by-step with new vehicles, new engine versions or technical revisions. This will enable complete WLTP conformity to be assured for the entire fleet of the BMW Group.
